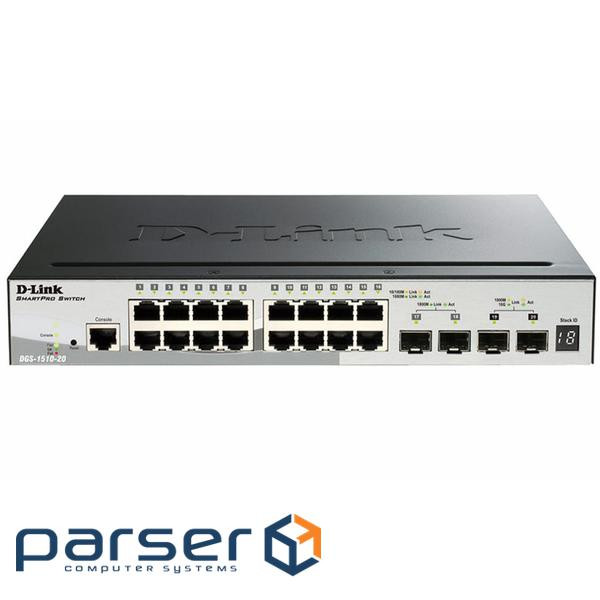

D-Link DGS-1510-20
Stacked SmartPro Gigabit Switch with 16 ports 10/100 / 1000Base-T + 2 Gigabit SFP ports and 2 10G SFP + ports

Interfaces
Ports
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, 802.3ae 10 GbE, IEEE 802.3x Flow Control for Full Duplex, Auto-Detect

Number of ports
• 16 ports 10/100/1000 Mbit / s,
• 2 Gigabit SFP ports
• 2 10G SFP + ports

Network cables
• UTP Cat. 5, Cat. 5e (max. 100 m)
• EIA / TIA-568 100th STP (max. 100 m)

Half- / full duplex
Full / half duplex for 10/100 Mbps

Auto cable polarity detection
Configurable automatically or manually MDI / MDIX

Performance
Switching matrix
76 Gbps

Transfer method
Store-and-forward

MAC Address Table
16,000 entries per device

Update MAC Addresses
• Up to 512 static MAC address entries
• Enable / Disable MAC Auto-Learning

64-byte packet forwarding rate
56,54 Mpps

Packet buffer
1.5 MB per device

Software features
Stacking
• Virtual Stacking
• D-Link Single IP Management
• Up to 32 devices in the virtual stack
• Bandwidth: up to 20 GB
• Physical Stacking
• Linear or ring topology
• Full duplex bandwidth: up to 40 GB
• Up to 6 devices per stack

L2 functions
• MAC address table: 16K
• Flow control
• 802.3x flow control
• Prevent blocking HOL
• Jumbo frames up to 9000 bytes
• IGMP Snooping
• IGMP v1 / v2 Snooping
• IGMP v3 awareness
• Supports up to 512 IGMP groups
• Supports up to 128 static multicast groups
• IGMP on VLAN
• IGMP Snooping Querier support
• IGMP Snooping Fast Leave based node
• MLD Snooping
• Supports MLD v1 / v2 awareness
• Support 512 groups
• Supports 128 static multicast groups
• MLD Snooping based on VLAN
• MLD Fast Leave based node
• MLD Snooping Querier
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• 802.1s MSTP
• Loopback Detection feature
• 802.3ad Link Aggregation
• Max. 32 groups per device / 8 ports per group
• Port Mirroring
• Supports 4 mirroring groups
• One-to-One, Many-to-One
• Supports mirroring for inbound / outbound / traffic in both directions
• Multicast filtering
• Redirect all unregistered groups
• Filtering all unregistered groups
• LLDP, LLDP-MED

VLAN
• 802.1Q Tagged VLAN
• VLAN groups: 4K
• Custom VID: 0 ~ 4094
• Asymmetric VLAN
• Auto Voice VLAN
• Auto Surveillance VLAN

Quality of Service (QoS)
• 802.1p Quality of Service
• Processing queues
• Strict priority
• Weighted Priority (WRR)
• 8 queues per port
• Bandwidth Management
• Port Based (Inbound / Outbound, with a minimum of 64 Kbps for 10/100/1000 BASE-T)
• CoS based on:
• 802.1p priority queues
• VLAN
• MAC Addresses
• Ether type
• IP Addresses
• DSCP
• Protocol type
• TCP / UDP port numbers
• DSCP for IPv6 traffic class
• IPv6 stream tags

L3 functions
• ARP
• 256 static ARP
• Gratuitous ARP support
• IPv6 Neighbor Discovery (ND)
• Default route
• Static routing
• Max. Number of static IPv4 route records: 64
• Max. IPv6 static route records count: 32

Access Control Lists (ACLs)
• ACL based on:
• 802.1p priority queues
• VLAN
• MAC Addresses
• Ether type
• IP Addresses
• DSCP
• Protocol type
• TCP / UDP port numbers
• DSCP for IPv6 traffic class
• IPv6 stream tags
• ACL actions
• Allow
• Reject
• Max. number of access lists: 256
• Max. number of rules: 768
• One or more ports (each rule)
• scheduled ACL
• ACL statistics

Security
• Port Security
• Supports up to 128 MAC addresses per port
• Broadcast / multicast / unicast storm protection
• Dynamic ARP Inspection
• Static MAC Address
• D-Link Safeguard Engine
• DHCP Server Screening
• Prevent ARP Spoofing Attacks
• Max. number of records: 64
• SSH
• Support v2
• Support IPv4 / IPv6
• SSL
• Support v1 / v2 / v3
• Support IPv4 / IPv6
• Traffic segmentation
• IP-MAC-Port Binding
• DHCP snooping
• IP Source Guard
• Dynamic ARP inspection
• DHCPv6 Guard
• RA Guard
• IPv6 Snooping
• IPv6 Source Guard
• Prevent DoS attacks

AAA
• Mixed authentication
• 802.1X and MAC address
• Local base / RADIUS server support
• Support EAP, OTP, TLS, TTLS, PEAP
• Web-based access control (WAC)
• Port based access control
• Host-based access control
• Dynamic VLAN assignment
• MAC based access control (MAC)
• Port based access control
• Host-based access control
• Dynamic VLAN assignment
• Access Control Based on Japanese Web Interface (JWAC)
• Port based access control
• Host-based access control
• Dynamic VLAN assignment

Oam
• cable diagnostics
• Restore factory default settings

Control
• CLI
• Telnet server
• TFTP client
• IPv6 Neighbor Discovery
• Customizable MDI / MDIX
• SNMP
• Support v1, v2c, v3
• SNMP Trap
• System log
• Max. number of journal entries: 10 000
• DHCP client
• D-Link Network Assistant utility support
• SNTP
• ICMPv6
• Supports IPv4 / v6 protocol stack
• Automatic configuration by DHCP
• RMON v1

D-Link Green 3.0 technology
• Energy saving
• Depending on connection status
• Turn off indicators or ports
• Sleep mode

Physical parameters
Power inlet
100-240 V AC, 50-60 Hz, internal universal power supply

Max. power consumption
20.3 watts

Standby power consumption
12.2 W

Number of fans
one

Noise level
43.8 dB (A)

Heat dissipation
41,602 BTU / h

Working temperature
From -5 to 50 ° C

Storage temperature
From -20 to 70 ° C

Working humidity
From 0% to 95% non-condensing

Storage humidity
From 0% to 95% non-condensing

Dimensions
280 mm x 180 mm x 44 mm
(size for installation in a standard 19-inch rack, height 1U)

Weight
1.24 kg

Indicators
Power / Stacking ID / Fan (per device), Link / Activity / Speed (per 10/100/1000 Mbps port), Link / Activity / Speed (per Gigabit SFP port), Link / Activity / Speed (per 10G port SFP +)
