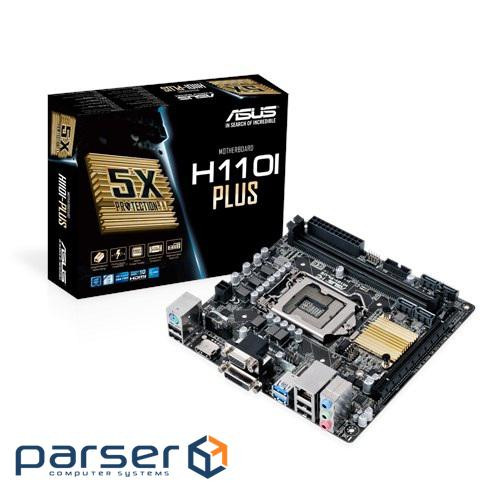

TelegramMotherboard Asus H110I-PLUS (90MB0PX0-M0EAY0)
-5%
Invoice with VAT 20%
Address delivery «Nova Posta»
Courier in Kiev 60 ₴| CPU | |
|---|---|
| Socket | 1151 |
| Supported Processors | 6th generation Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron |
| System bus | |
| Type of system bus | Direct Media Interface (DMI) |
| Max. bus speed | 5.0 GT / s |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H110 |
| RAM | |
| Type of RAM | DDR4 |
| Number of connectors, pcs. | 2 |
| Frequency, MHz | 2133 |
| The amount of installed memory, up to, GB | 32 |
| Dual channel support | Yes |
| Sound | |
| Audio Type | HDA (High Definition Audio) |
| Audio controller | Realtek® ALC887 |
| Sound depth, bit (a) | 24 |
| Multichannel sound | 7.1 |
| Wired connection | |
| Number of LAN controllers, pcs. | one |
| Speed | 10/100/1000 Mbit / s |
| Expansion slots | |
| PCI-Express x16 | 1 PC. |
| Rear ports and connectors | |
| PS / 2 keyboard / mouse | Yes |
| COM (Serial), pcs. | one |
| VGA, pcs | one |
| DVI | one |
| HDMI | Yes |
| USB 2.0, pcs. | four |
| USB 3.0, pcs | 2 |
| Internal connectors and pads | |
| Main power | 24 pin ATX |
| 12V power supply | 8 pin ATX12V |
| 4 pin for fan, pcs. | 2 |
| SATA III (6.0 Gb / s), units | four |
| Front panel audio interface | Yes |
| Block for 2 USB 2.0 ports, pcs. | one |
| Block for 2 USB 3.0 ports, pcs. | one |
| TPM | Yes |
| Other connectors | 1 x Clear CMOS Jumper, 1 x Chassis Opening Connector |
| Bios | |
| BIOS type | UEFI |
| physical characteristics | |
| Form factor | Mini-ITX |
| Height mm | 170 |
| Width, mm | 170 |
| Main characteristics | |
| Type of | Motherboard |
| Manufacturer | Asus |
| CPU socket | Socket LGA 1151 |
| Chipset | Intel H110 |
| Form factor | miniITX |
| CPU support | Intel Core i7/Core i5/Core i3/Pentium/Celeron |
| Max. count CPU | 1 |
| Memory support | |
| Memory slots | 2 x DIMM |
| Memory Modes | Dual-channel (dual-channel memory architecture) |
| Memory Type | DDR4 |
| Supported Memory Standards, MHz | 2133 МГц |
| Maximum RAM, GB | 32 |
| ECC support | Not |
| SLI support | Not |
| CrossFire support | Not |
| Audio | |
| Audio codec | Realtek ALC887 |
| Data store | |
| RAID support (Software) | Not |
| Number of connectors M.2 (NGFF) | Not |
| Number of SATA II connectors (3Gb / s) | Not |
| Number of SATA III connectors (6Gb / s) | 4 |
| Number of SATA Express (SATAe) connectors | Not |
| Network | |
| Network Controller | Realtek RTL8111H |
| Number of LAN ports | 1 x 10/100/1000 Mbit / s |
| Connectors and Outputs | |
| Expansion slots | 1xPCI-E x16 Поддержка PCI Express 2.0 есть Поддержка PCI Express 3.0 есть |
| Back panel connectors | 6 USB, из них 2 USB 3.0, D-Sub, DVI, HDMI, Ethernet, PS/2 (клавиатура), PS/2 (мышь) |
| Power connectors | 24+4 pin |
| Additionally | |
| BIOS | AMI |
| UEFI support | Yes |
| Wi-Fi | Not |
| OS support | Windows 10, Windows 8.1, Windows 8, Windows 7, Linux, DOS |
| Weight of packing | 0.7 kg |
| Warranty | |
| Warranty | 36 months |
| Purpose | For desktop |
* Characteristics, delivery and appearance of the product may differ from those indicated and / or may be changed by the manufacturer without reflection of the product in the card.
