Courier in Kiev 60 ₴ Power supply with active PFC (Power Factor Correction) module
Rated power: 500 W
Input voltage: 230V
Frequency: 50 Hz
Maximum load: + 3.3V - 22A, + 5V - 19A, + 12V1 - 24A, + 12V2 - 21A, + 5VSB - 2.5A, -12V - 0.3A,
Combined load: + 12V1 &, + 12V2 - 396 W, + 3.3VDC &, + 5VDC - 130 W
Power Connector Motherboard: 24 + 4 pin
Video card power connector: 1x6 + 2 pin
Peripheral / FDD / SATA Connectors: 2/1/3
Efficiency: <, 80%
Power supply cooling: 1x120 mm fan
Speed control: yes, from temperature sensor
Cable length: 0.4 m
Dimensions (W x H x D): 150 x 86 x 140
Weight: n / d
Form Factor: ATX 2.3
Equipment:
OEM option (without power cable, without box)
Additional Information:

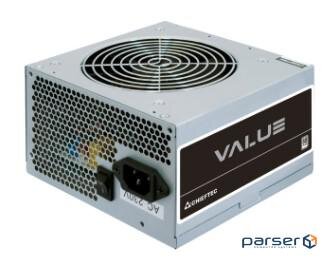

Model APB-500B8 belongs to the newest and most modern budget series of power supplies CHIEFTEC VALUE, one of the best among all the solutions on the market according to the criteria of price / quality / efficiency. The unit has a wide range of connectors and long native cables, which simplifies the assembly of the system. Among other things, it has a quiet 120mm fan with thermal control, which allows it not to make too much noise even at full load of the system and to provide REAL output power. APB-500B8 is certified according to CE, CB TUV, EAC, has UVP, OVP, SCP, OPP protection and is the best choice for an inexpensive home or office PC.
Security:
- UVP (Undervoltage Protection)
- OVP (Overvoltage Protection)
- SCP (Short Circuit Protection)
- OPP (Overload Protection)
- AFC (Automatic Fan Speed Control),
Warranty:
- 24 months
Rated power: 500 W
Input voltage: 230V
Frequency: 50 Hz
Maximum load: + 3.3V - 22A, + 5V - 19A, + 12V1 - 24A, + 12V2 - 21A, + 5VSB - 2.5A, -12V - 0.3A,
Combined load: + 12V1 &, + 12V2 - 396 W, + 3.3VDC &, + 5VDC - 130 W
Power Connector Motherboard: 24 + 4 pin
Video card power connector: 1x6 + 2 pin
Peripheral / FDD / SATA Connectors: 2/1/3
Efficiency: <, 80%
Power supply cooling: 1x120 mm fan
Speed control: yes, from temperature sensor
Cable length: 0.4 m
Dimensions (W x H x D): 150 x 86 x 140
Weight: n / d
Form Factor: ATX 2.3
Equipment:
OEM option (without power cable, without box)
Additional Information:
Model APB-500B8 belongs to the newest and most modern budget series of power supplies CHIEFTEC VALUE, one of the best among all the solutions on the market according to the criteria of price / quality / efficiency. The unit has a wide range of connectors and long native cables, which simplifies the assembly of the system. Among other things, it has a quiet 120mm fan with thermal control, which allows it not to make too much noise even at full load of the system and to provide REAL output power. APB-500B8 is certified according to CE, CB TUV, EAC, has UVP, OVP, SCP, OPP protection and is the best choice for an inexpensive home or office PC.
Security:
- UVP (Undervoltage Protection)
- OVP (Overvoltage Protection)
- SCP (Short Circuit Protection)
- OPP (Overload Protection)
- AFC (Automatic Fan Speed Control),
Warranty:
- 24 months
| В наявності | Так |
| Main characteristics | |
| Type of | Power Supply |
| Manufacturer | Chieftec |
| Form factor | ATX |
| Power, W | 500 |
| 80 PLUS certificate | Not |
| Cable type | Fixed |
| Motherboard power | 24 pin |
| CPU power | 4 pin |
| Video card power | 1 x 6 + 2 pin |
| Molex connectors, pcs | 2 |
| SATA connectors, pcs | 3 |
| Cooling system | 1 x fan (120 mm) |
| Warranty | |
| Warranty | 24 months |
* Characteristics, delivery and appearance of the product may differ from those indicated and / or may be changed by the manufacturer without reflection of the product in the card.
