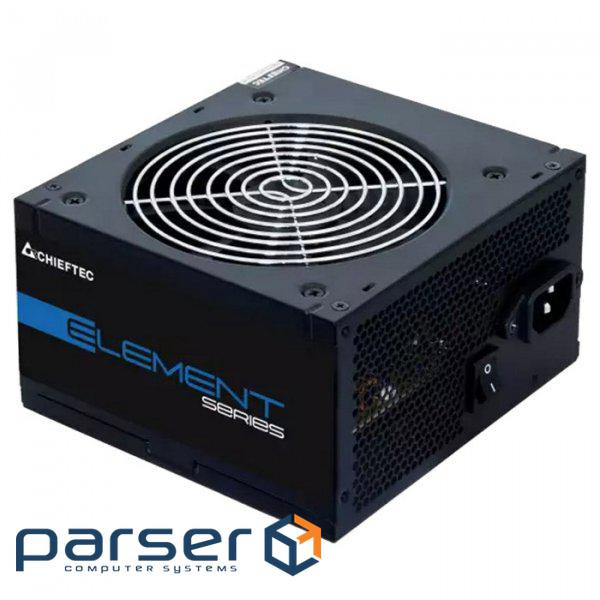

TelegramPower Supply 500W CHIEFTEC Element ELP-500S
Invoice with VAT 20%
Address delivery «Nova Posta»
Courier in Kiev 60 ₴ Power supply with active PFC (Power Factor Correction) module
Rated power: 500 W
Input voltage: 230V
Frequency: 50 Hz
Maximum load: + 3.3V - 22A, + 5V - 19A, + 12V1 - 24A, + 12V2 - 21A, + 5VSB - 2.5A, -12V - 0.3A,
Combined load: + 12V1 &, + 12V2 -, 408 W, + 3.3VDC &, + 5VDC - 130 W
Power Connector Motherboard: 24 + 4 pin
Video card power connector: 1x6 + 2 pin
Peripheral / FDD / SATA Connectors: 2/1/3
Efficiency:>, 85%
Power supply cooling: 1x120 mm fan
Speed control: yes, from temperature sensor
Cable length: 0.5 m
Dimensions (W x H x D): 150 x 86 x 140
Weight: n / d
Form Factor: ATX 2.3
Additional Information:
Rated power: 500 W
Input voltage: 230V
Frequency: 50 Hz
Maximum load: + 3.3V - 22A, + 5V - 19A, + 12V1 - 24A, + 12V2 - 21A, + 5VSB - 2.5A, -12V - 0.3A,
Combined load: + 12V1 &, + 12V2 -, 408 W, + 3.3VDC &, + 5VDC - 130 W
Power Connector Motherboard: 24 + 4 pin
Video card power connector: 1x6 + 2 pin
Peripheral / FDD / SATA Connectors: 2/1/3
Efficiency:>, 85%
Power supply cooling: 1x120 mm fan
Speed control: yes, from temperature sensor
Cable length: 0.5 m
Dimensions (W x H x D): 150 x 86 x 140
Weight: n / d
Form Factor: ATX 2.3
Additional Information:
The newest ELEMENT series comes to the market at a very attractive price and combines all the latest innovations, high workmanship, excellent design and efficiency>, 85% at 230V. Completely black, with a silent 120mm fan, long peripheral cables, a complete power cable and packed in a durable, attractive retail box, the ELP-500S is designed to be a bestseller.
| Security : |
|
| Certificates : | CE, CB, TUV |
| Warranty : | 24 months |
| В наявності | Так |
| Main characteristics | |
| Type of | Power Supply |
| Manufacturer | Chieftec |
| Form factor | ATX |
| Power, W | 500 |
| 80 PLUS certificate | Not |
| Cable type | Fixed |
| Motherboard power | 24 pin |
| CPU power | 4 pin |
| Video card power | 1 x 6 + 2 pin |
| Molex connectors, pcs | 2 |
| SATA connectors, pcs | 3 |
| Cooling system | 1 x fan (120 mm) |
| Purpose | не задано |
| Weight of packing | 1.65 kg |
| Warranty | |
| Warranty | 12 months |
* Characteristics, delivery and appearance of the product may differ from those indicated and / or may be changed by the manufacturer without reflection of the product in the card.
