TelegramWireless sensor receiver Ajax ocBridge Plus (7104/1153)
Invoice with VAT 20%
Address delivery «Nova Posta»
Courier in Kiev 60 ₴

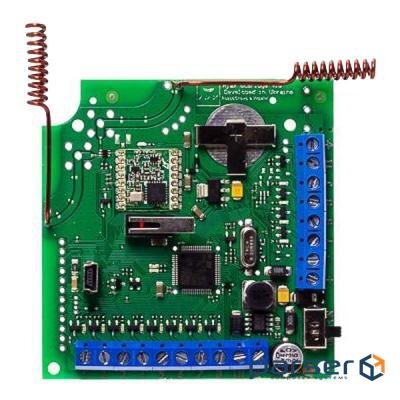

Ajax ocBridge Plus (7104) wireless sensors receiver is designed to connect Ajax wireless sensors to any wired security control panel. To do this, Ajax ocBridge Plus is equipped with a radio channel receiver and 12 transistor outputs - 8 security outputs and 4 service outputs (tamper, sensor loss, battery discharge, jamming).
Using ordinary wires, the outputs of the ocBridge Plus receiver are connected to the inputs of the wired control panel. Thus, the outputs of the receiver become analogous to conventional wired sensors for the inputs of the control panel. When the wireless sensor is triggered, it sends a signal to the receiver.
The Ajax ocBridge Plus wireless sensor receiver accepts it, processes it, and opens/closes the output corresponding to the sensor. The control panel, in turn, perceives the closing / opening of the receiver output as closing / opening of the sensor loop and issues an alarm .
| В наявності | Так |
| Manufacturer | Ajax |
| Type of | Radio receiver |
| Body material | Plastic/Textile |
| Colour | Green |
| Weight of packing | 9 kg |
| Warranty | 24 months |
* Characteristics, delivery and appearance of the product may differ from those indicated and / or may be changed by the manufacturer without reflection of the product in the card.
