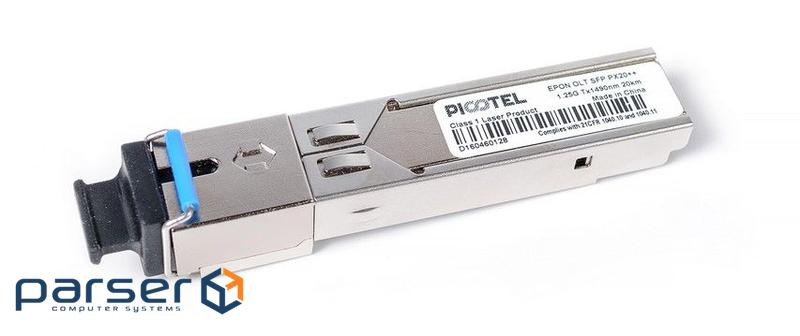

Optical module Picotel EPON OLT SFP PX20++ (20км, SC, TX1490нм. RX -32 (EPON OLT SFP PX20++20км)

Art: EPON OLT SFP PX20++20км
ID: 356489
Technology: EPON Dovzhina hvili transmission: 1490 nm Dovzhina hvili reception: 1310 nm Form factor: SFP (Small Form-factor Pluggable) Optical rose "m: SC / UPC Transmission force (TX): +5 dBm ~ +8 dBm Acceptance sensitivity (RX): -33 dBm
Waiting for supply
(incl. VAT 20%)

  • Invoice with VAT 20% Invoice with VAT 20%
  • Invoice w\o VAT Invoice w\o VAT
  • Address Address delivery «Nova Posta»
    дату отправки уточняйте...
  • In the department of «Nova Posta» In the department of «Nova Posta»
    дату отправки уточняйте...
  • Courier in Kiev Courier in Kiev 60
    дату отправки уточняйте...
  • Гарантия Warranty: 12 months
  • Обмен/возврат Exchange/Refund: 14 days

Description of Picotel EPON OLT SFP PX20++ Transceiver Optical
receiver (transceiver) EPON OLT SFP PX20++ has increased
parameters of output optical power
at a wavelength of 1490 nm and high sensitivity
of the return channel at a wavelength of 1310 nm.
The module is used to transmit/receive
data in EPON (GEPON) OLT at a speed of 1.25 Gbit/s.
Supports ''hot swapping'' (HotSwap) mode during
operation.
Main characteristics
- IEEE 802.3ah 1000BASE-PX20++ GEPON
- simultaneous reception and transmission of signals
- power supply 3.3V
- operating temperature -10 ° ~ 70 ° C
- meets the requirements RoHS-6

Manufacturer Picotel
Type of SFP module
Weight of packing 9 kg
Warranty 12 months

* Characteristics, delivery and appearance of the product may differ from those indicated and / or may be changed by the manufacturer without reflection of the product in the card.
