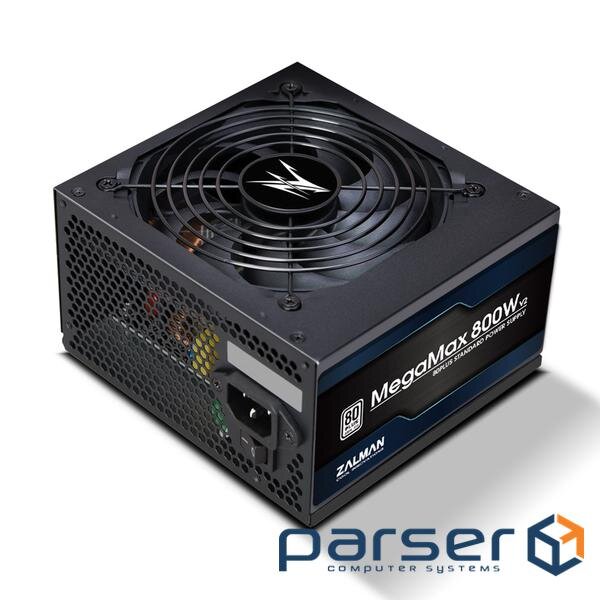

Courier in Kiev 60 ₴Power supply 800W ZALMAN MegaMax ZM800-TXII
Specifications:
Form factor: ATX
Power: 800W
Specification: ATX 12V V2.31
PFC module: active
80 PLUS certification: Standard
Efficiency (max.): 85%
Motherboard Power: 20+4 pin
CPU Power: 1 × 4+4 pin
1 × 8 pin
6+2-pin graphics card power (PCIe): 4
SATA connectors: 8
Molex connectors: 4
FDD connectors: 1
Board power cable length: 550mm
CPU power cable length: 730mm
+3.3V line current: 22A
+5 line current V: 22A
+12V line current 1: 60A
-12V line current: 0.5A
+5V line current Standby: ;3A
PSU Cooling: 120mm fan
Protection: OPP (over power)
OVP (overvoltage)
SCP (short circuit) )
UVP (undervoltage protection)
Estimated MTBF: 100k hours
Cabling: fixed
Backlight: none
Input voltage: 220...240V
Dimensions: 150 × 140 x 86 mm
Weight: 1.85 kg
| В наявності | Так |
| Main characteristics | |
| Type of | Power Supply |
| Manufacturer | Zalman |
| Form factor | ATX |
| Power, W | 800 |
| 80 PLUS certificate | 80 PLUS |
| Cable type | Fixed |
| Motherboard power | 20+4 pin |
| CPU power | 1 x 4 + 4 pin / 1 x 8 pin |
| Video card power | 4 x 6 + 2 pin |
| Molex connectors, pcs | 4 |
| SATA connectors, pcs | 8 |
| Cooling system | 1 x fan (120 mm) |
| Warranty | |
| Warranty | 36 months |
* Characteristics, delivery and appearance of the product may differ from those indicated and / or may be changed by the manufacturer without reflection of the product in the card.
