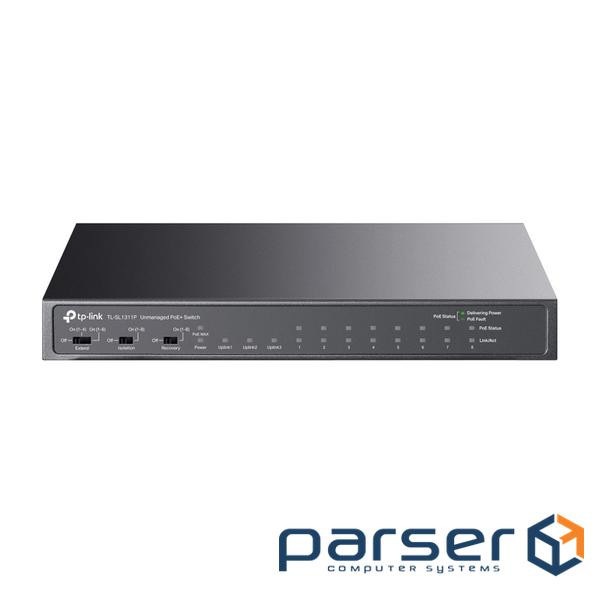

TP-Link Switch TL-SL1311P 8PT 10/100Mbps + 3Port Gigabit Desktop Switch with 8Port PoE+ Retail

TL-SL1311P
8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
8x 10/100 Mbps RJ45 Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
8x PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports
Up to 250 m data and power transmitting range under Extend Mode
Isolation Mode allows one-click client traffic separation for higher security and performance
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Fanless Design reduces power consumption and works silently in its location
Plug and play with no configuration required
HARDWARE FEATURES
Interface
8x 10/100 Mbps 802.3af/at PoE+ Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate
5.6544 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 18
Power Supply: 65 W
Mac Address Table
2K
Jumbo Frame
16 KB
Switching Capacity
7.6 Gbps
Max Power Consumption
5.61 W (220 V/50 Hz. no PD connected)
77.32 W (110 V/50 Hz. with 65 W PD connected)
Max Heat Dissipation
19.13 BTU/h (no PD connected)
263.7 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 14 and Ports 18, Up to 250 m PoE power supply and data transmission)
Isolation Mode Button (Ports 18)
PoE Auto Recovery Button (Ports 18)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SL1311P
Power Adapter
Installation Guide
Environment
Operating Temperature: 0-40 ^oC (32-104 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"xW"xH")
13 x 10 x 3
Weight
3 lbs
Warranty Information
Limited Lifetime
