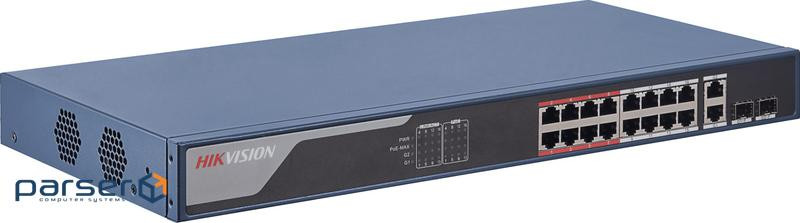

Hikvision Switch DS-3E1318P-EI Smart managed PoE Switch 16x100 PoE Port 2x2000 RJ45 Port Retail

DS-3E1318P-EI
Smart Managed 16-Port 100 Mbps PoE Switch
The Hikvision DS-3E1318P-EI Smart Managed 16-Port 100 Mbps PoE Switch features easy management and maintenance. You can easily deploy, monitor, and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network, and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.
16 x 100 Mbps PoE Ports, 2 x Gigabit Combos Uplink
IEEE 802.3at/af PoE Ports
Network Topology Management, Alarm Push, Network Health Monitor
6 KV Surge Protection for PoE Ports
AF/AT Camera Can Reach up to 980 ft (300 m) in Extend Mode
Network Parameters
Port Number
16 x 100 Mbps PoE RJ45 ports, and 2 x gigabit combos
Port Type
RJ-45 port, full duplex, MDI/MDI-X adaptive
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding Mode
Store-and-forward switching
Working Mode
Standard mode (default), Extend mode
High Priority Ports
Ports 1 to 8
Long-Distance Transmission Ports
Ports 1 to 16
MAC Address Table
16 K
Switching Capacity
7.2 Gbps
Packet Forwarding Rate
5.3568 Mpps
Internal Cache
4 Mbits
PoE Power Supply
PoE Standard
Ports 1 to 16: IEEE 802.3af, IEEE 802.3at
Poe Power Pin
Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously
Poe Port
Ports 1 to 16
Maximum Port Power
30 W
PoE Power Budget
230 W
Software Function
Device Maintenance
Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters
Typology Display
Supported
Port Configuration
Supports rate, flow control, and switch configuration
PoE Function
IEEE 802.3at/af device provides power supply
VIP Ports Function
Supports data of ports in red area forwarded in priority.
Link Aggregation
G1, G2 port static link aggregation
Device Status Alarm
Device status, PoE_MAX, and PoE status alarm
Network Management
Supports client management.
Port Statistics
Port transmitting/receiving real-time rate statistics, 7-day transmitting/receiving peak rate statistics
General
Shell
Metal material
Operating Temperature
-10^o to 55^o C (14^o to 131^o F)
Storage Temperature
-40^o to 85^o C (-40^o to 185^o F)
Operating Humidity
5% to 95% (non-condensing)
Storage Humidity
5% to 95% (non-condensing)
Power Supply
100240 VAC, 50/60Hz, maximum 2.5 A
Maximum Power Consumption
250 W
Power Source
250 W
Approval
EMC
FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 6, 2016)
Safety
UL (UL 60950-1) CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry
CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
Item Dimension (L"xW"xH")
4 x 8 x 21
Weight
12 lbs
Warranty Information
3 YEARS
