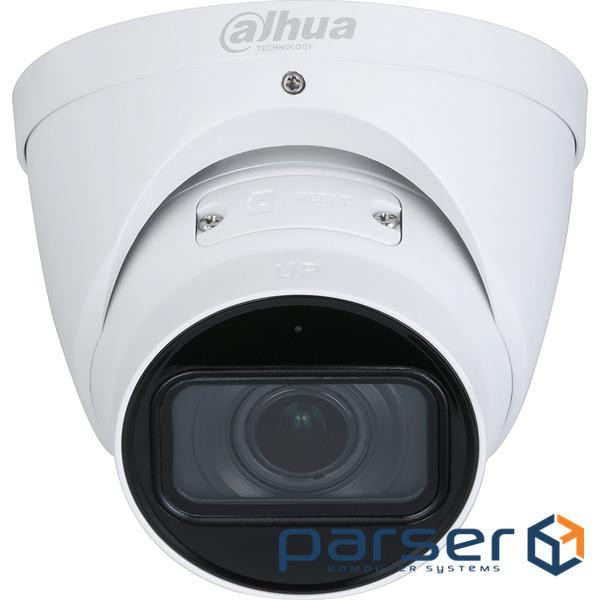

IP камера відеоспостереження STARLIGHT HDW5842T-ZE-S2 (HDW5842TPZE)

Camera
Image Sensor 1/1.8” CMOS
Max. Resolution 3840 (H) x 2160 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.004 lux@F1.4 (Color, 30 IRE) 0.0004 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 50m (164.0 ft)
Illuminator On/Off Control Auto, Manual
Illuminator Number 2 (IR)
Pan/Tilt/Rotation Range Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Lens Mount ?14
Focal Length 2.7 mm–12.0 mm
Max. Aperture F1.4
Field of View Horizontal: 110.4° (W)–45° (T) Vertical: 57.8° (W)–25.2° (T) Diagonal: 133.8° (W)–51.8° (T)
Iris Control Auto
Close Focus Distance W/T:1.0m (3.3 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 86 m (282.2 ft) 34.4 m (112.9 ft) 17.2 m (56.4 ft) 8.6 m (28.2 ft)
T 196 m (643.0 ft) 78.4 m (257.2 ft) 39.2 m (128.6 ft) 19.6 m (64.3 ft)
Smart Event
IVS Abandoned object, missing object
Heat Map Yes
Professional, intelligent
IVS (Perimeter Protection) Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), loitering detection, people gathering, parking detection
Face Detection Face detection, track, optimization, snapshot, face enhancement, face exposure, face matting setting: face, single inch photo, three snapshot methods: real-time snapshot, optimization snapshot, quality priority, face angle filter, optimization time setting
People Counting Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+/H.264+
Video Frame Rate Main stream: 3840x 2160 (1 fps–25/30 fps) Sub stream: D1 (1 fps–25/30 fps) Third stream: 1080p (1 fps–25/30 fps) *The values above are the max. frame rates of each stream, for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 3840 x 2160, 2592 x 1944, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 1.3M (1280 x 960), 720p (1280 x 720), D1 (704 x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/352 x 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–8192 kbps H.265: 32 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control Auto, manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Defog Yes
Image Rotation 0°/90°/180°/270°(Support 90°/270° with 4M resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression PCM, G.711a, G.711Mu, G.726, G.723
Alarm
Alarm Event No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, defocus detection, scene changing, intrusion, tripwire, abandoned object, missing object, fast moving, parking detection, loitering detection, people gathering, input abnormal detection, intensity change detection, people counting, face detection, people counting in area, stay alarm, people No. exception detection, queue management
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption, configuration encryption, Digest, WSSE, account lockout, security logs, generation and importing of x.509 certification, HTTPS, trusted boot, trusted execution, trusted upgrade
Network Protocol IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, 802.1x, SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, P2P
User/Host 20 (Total bandwidth: 80 M)
Storage FTP, SFTP, Micro SD card (Support max. 256 G), NAS
Browser IE: IE8 and later Chrome Firefox Safari: Safari 12 and later
Management Software Smart PSS, DSS, DMSS
Mobile Client iOS, Android
Certification
Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC (±30%)/PoE (802.3af)/ePoE
Power Consumption Basic power consumption: 3.4 W (12 VDC), 4.3 W (PoE) Max. power consumption (H.265 + max. stream + intelligent function + IR LED + focus): 6.4 W (12 VDC), 7.3 W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)/Less than 95% RH
Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Protection IP67
Structure
Casing Metal
Product Dimensions 108.3 mm x ?122 mm (4.3" x ?4.8")
Net Weight 685g (1.5 lb)
Gross Weight 828 g (1.8 lb)
